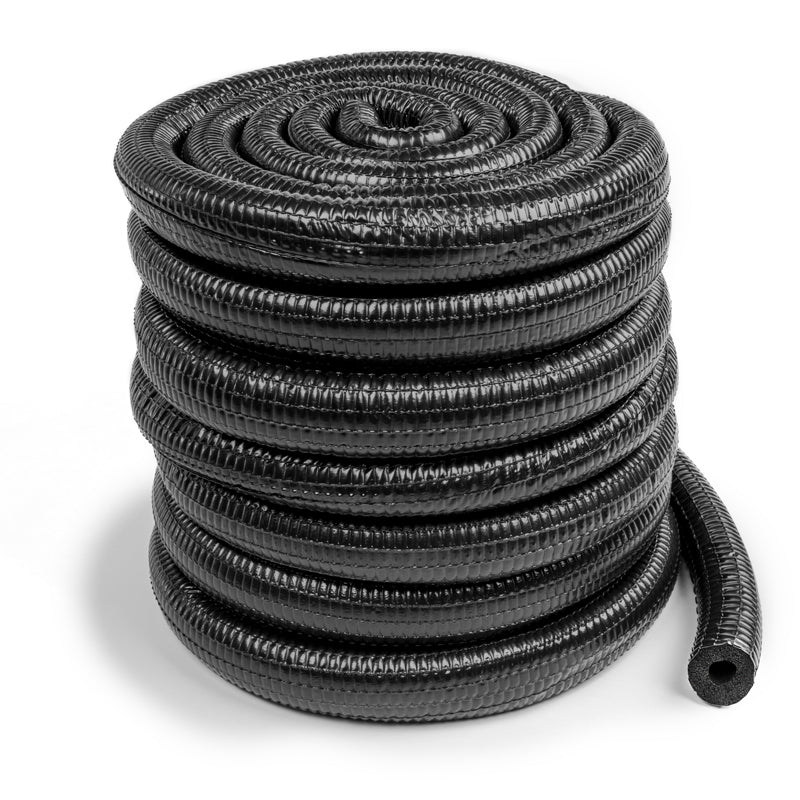

Armacell PCT01212CL ArmaFlex Shield Flexible Pipe Insulation, 1/2" O.D. CTS x 1/2" Wall, 105' Continuous Coil

ArmaFlex Shield consists of an ArmaFlex insulation core with a flexible, factory-applied polymeric protective covering designed to prevent damage to the insulation from sunlight., installation, and physical abuse.

UV-Resistant, Pre-Jacketed Pipe Insulation

• Protection against thermal losses, condensation, and moisture ingress
• Durable outer jacket resists damage due to sunlight, installation, and physical abuse
• No field-applied protective coating or additional jacketing required

No Jacket Required

ArmaFlex Shield flexible foam insulation is a moisture- and UV-resistant product with a durable, factory-applied protective jacket. Its tough coating can take the abuse of challenging installations and stands up to extreme elements like UV, heat, and cold, making it a great choice for outdoor applications.

The closed-cell structure of ArmaFlex is famous for preventing moisture ingress, controlling condensation and saving energy. With ArmaFlex Shield, Armacell created another level of protection with a durable polymeric coating that's built to last. Ideal for line set, HVAC, refrigeration, residential or commercial plumbing lines, and outdoor installations.

ArmaFlex Shield meets the requirements of the International Energy Conservation Code (IECC) for the protection of insulation intalled outdoors. Its durable, outer covering resists damage due to sunlight and other outdoor hazards including line trimmers used for lawn maintenance. No field-applied protective coating or additional jacketing required.

Technical Data Sheet

Safety Data Sheet

Specifications

Temperature Range:

• Service Temperature:
  • Min. -297°F (-183°C)
  • Max. 220°F (82°C)

Thermal Conductivity:

• R-Value for Tube:
  • 3.3

Fire Performance and Approvals

• Surface Spread of Flame:
  • Flame Spread Index less than 25; Smoke Developed Index less than 50; 25/50 Rated (ASTM E84 and ULu23, CAN ULC S102.2)
• Hot Surface Performance:

  • Pass at 250°F (ASTM C411)

Resistance to Water

• Water Absorption:  0.2%

Weather and UV Resistance

• UV Resistance:
  • Excellenct: no deterioration (ASTM G154)
• Resistance to Ozone:
  • Good (ASTM D1149)
