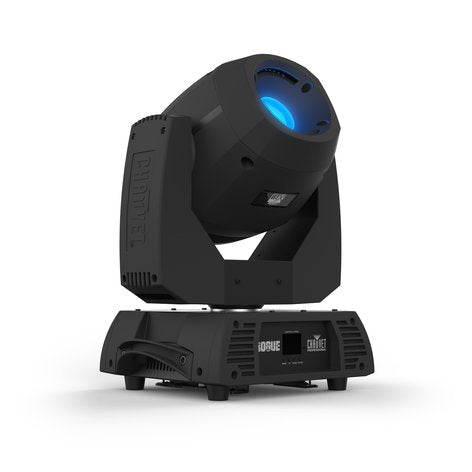

Chauvet Pro Rogue R1X Spot 170W LED Moving Head Spot Fixture

Chauvet Professional's Rogue R1X Spot shines bright with a 170W LED light source and 16° beam angle for crisp gobo projections in a range of eight beautiful colors. This moving head spot fixture emits solid, punchy beams and brings creativity with a rotating 3-facet prism for stunning aerial effects, a motorized iris and focus for beam shaping, plus two gobo wheels, one of which rotates and has 7 interchangeable gobos for custom looks.

Includes

• Rouge R1X Spot
• Neutrik powerCON power cord
• Omega bracket with mounting hardware

Features

• Bold, bright 170 W LED light engine for punchy, solid beams
• Color wheel with 8 colors, split color ability, and continuous variable-speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris and 3-facet prism for stunning visual effects
• Neutrik® powerCON® power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and troubleshooting
• Simple and complex DMX channel profiles for programming versatility

Specifications

• Optical:
  • Light Source: 1 LED (CW) 170W, (7.4 A), 9,491 K, 50,000 hours life expectancy
  • Color Temperature (at full): 9,491 K
  • Beam Angle: 16°
  • Lumens – Source: 12,000
  • Lumens – Output: 6,700
  • Illuminance (total): 4,620 lux @ 5 m
  • Selectable LED power output: 50-100
  • Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz
• Dynamic Effects:
  • Pan and Tilt: 540°/250°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal),continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm (max. thickness)
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 25 mm (outside), 23 mm (image), 3 mm (max thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Motorized
  • Iris: Motorized
  • Prism: 3 facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Move in Black: Yes
• Construction / Physical:
  • Dimensions: 11.10" x 14.20" x 17.60" (282 x 360 x 447 mm)
  • Weight: 37.6 lbs (17.1 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer
• Connections:
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control:
  • Control Protocol: DMX, RDM
  • DMX Channels: 16 or 19
  • Modes/Personalities: 2 personalities (16 or 19)
• Electrical:
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
  • Power and Current: 319W, 2.69 A @ 120 V, 60 Hz
  • Power and Current: 303W, 1.49 A @ 208 V, 60 Hz
  • Power and Current: 297W, 1.33 A @ 230 V, 50 Hz
• Certifications / Qualifications:
  • CE, MET
  • IP Rating: IP20, dry location
• Manufacturer Warranty (US):
  • Fixture: 3-year
  • LED Engine: 5-year (covers LED failure, excluding lumen maintenance (L70) and color maintenance)
