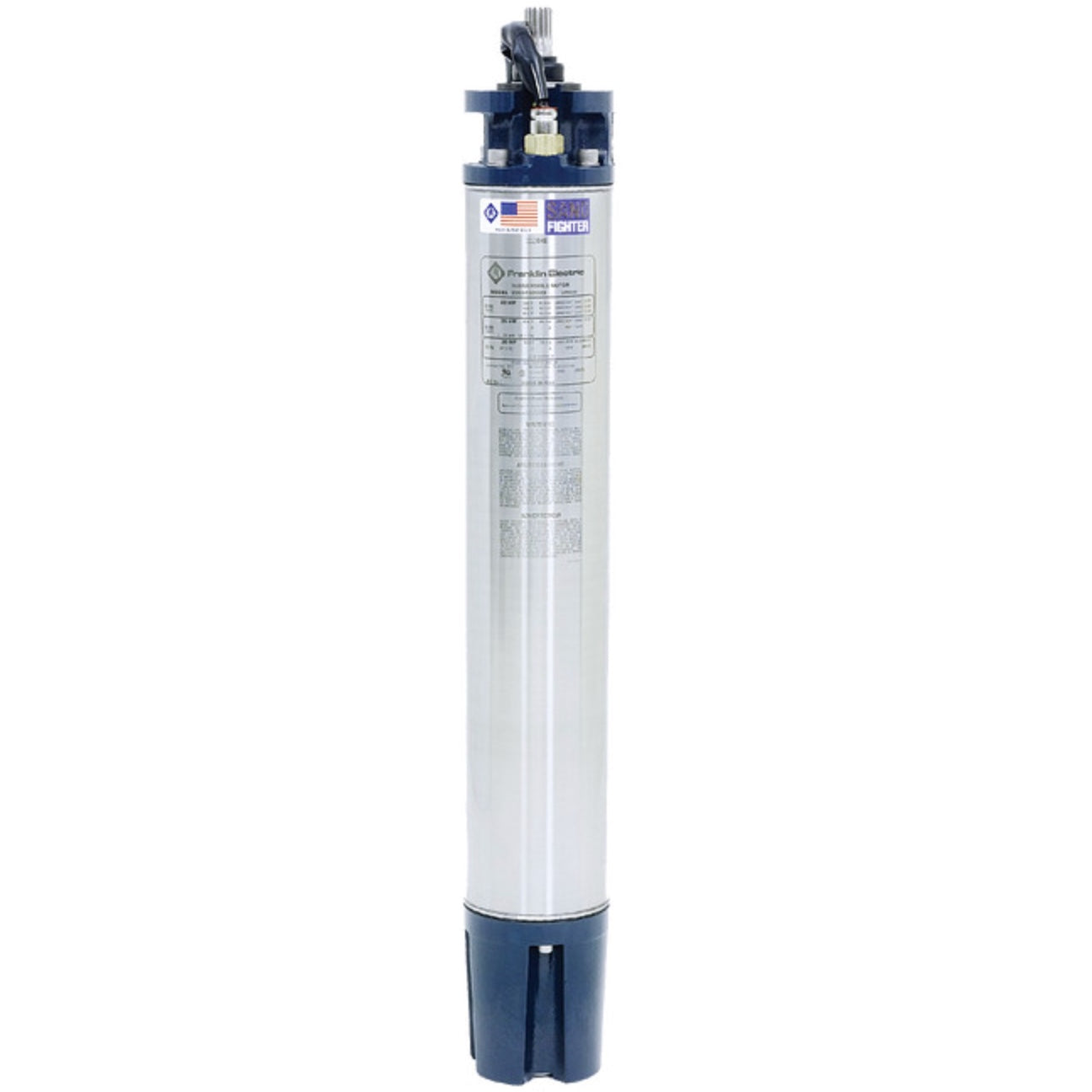

Franklin Electric 2766140003 - 6H3F 6" Encapsulated High-Temp Submersible Motor - Sand Fighter (20 HP, Three Phase, 460/380V, 6/5, W)

The Franklin Electric 2766140003 - 6H3F 6" Encapsulated High-Temp Submersible Motor - Sand Fighter Type - can handle water temperatures up to 194 Degrees F (90 Degrees C). Franklin's 6" submersible motors are used in wells demanding high flow rates or deeper installation. Designed and manufactured by Franklin Electric for quality and reliability when high flow or pressure is needed. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Motor Specifications:

Motor Shell Material:  300 Series SS

Voltage:  380/460V

Hz:  50/60

Motor:  20 HP, Three Phase

Motor Connection:  DOL

Manufacturer Description:

Demanding pumping applications have higher requirements. That’s why Franklin’s Hi-Temp Submersible Motors are engineered and tested to deliver exceptional performance in challenging, high-temperature well applications and/or low-flow conditions.

The 6-inch High-Temp Motor utilizes a distinctive premium encapsulation process and water-soluble coolant to allow dependable, continuous operation in 6" diameter or larger water wells with water temperatures up to 90 ºC (provided minimum allowable flow rates past the motor are maintained). This submersible motor is powered by design and can handle thrust loads 25% higher than a standard motor without oil. Its superior construction comes with water-lubricated radial and thrust bearings to benefit from a maintenance-free operation.

Series Features & Benefits:

• Up to 194 °F (90 °C) ambient temperature
• 100% increase in upthrust capability at 30 °C
• 25% increase in downthrust capability at 30 °C
• Wet Well, Reservoir, Low Flow approved in 12” diameter or larger wells with ambient water
  up to 87 °F (30 °C)
• High temperature leads
• Hermetically sealed stator
• Innovative high temperature winding encapsulation system
• FES92 exclusive water soluble, high temperature bearing lubrication
• Double-flange NEMA mounting for ease of handling and pump mounting
• Stainless steel splined shaft for maximum shaft/coupling contact
• Full 3450 RPM 60Hz design point for superior pump performance
• Sand Fighter™ Sealing System
• Franklin Electric’s exclusive Water-Bloc™ lead connection
• 316 SS and Y-∆ - consult factory
• Extended warranty available when used with FE Submonitor overload protection
