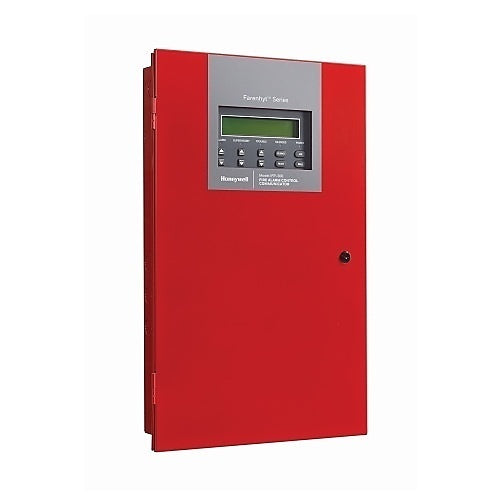

IFP-300 | Farenhyt Intelligent Fire Alarm Control Panel, 300 Points Red

Description

The Farenhyt IFP-300 is an intelligent addressable fire alarm control panel supporting up to 300 points with IDP/SK devices or 254 points with SD devices. Housed in a red surface-mount cabinet, it features a built-in IP/POTS communicator, configurable Flexput circuits, and a 4×40 LCD display.

Technical Specifications

Information About IFP-300

The IFP-300 is part of the Farenhyt Series of intelligent fire alarm control panels, built to support small to mid-sized applications requiring flexible system design. With one built-in signaling line circuit and expansion capability, the panel can monitor up to 300 addressable devices when using IDP/SK technology or 254 devices with SD protocol. Four Flexput circuits provide configurable NAC or auxiliary power outputs, making system wiring adaptable to specific site requirements. Standard features include JumpStart auto programming, drift compensation with maintenance alerts, and a large 4×40 LCD for intuitive system interaction.

Key Features:

• Intelligent Addressable Panel: Supports up to 300 addressable devices with IDP/SK or 254 with SD devices.
• Flexible SLC Support: One built-in loop expandable with SLC modules for larger installations.
• Configurable Flexput Circuits: Four outputs configurable as NACs or auxiliary power at 3.0 A each, 6.0 A max.
• Built-In Dual Communication: Integrated IP and POTS communicator with optional cellular expansion.
• Advanced Networking: Links up to 32 panels through SK-NIC with copper or fiber connectivity.
• Simplified Setup: JumpStart auto programming and PC configuration via USB streamline installation.
• Enhanced Detector Management: Provides drift compensation, maintenance alerts, and alarm verification.
• Large LCD Interface: 4×40 character display for clear system messages and programming navigation.
• Robust Power and Backup: Operates on 120 VAC with battery support from 17 to 55 Ah.
• Expanded Annunciation: Compatible with RA-2000 annunciators and 5824 printer interface for reporting.

The IFP-300 delivers the reliability and precision required for intelligent fire detection and notification in small to mid-sized building applications.
